USB 2.0 Series A Connectors
|
|
|
P/N: UPA-1001-RV3
Series A Plug Kit - Contacts, Insulator and Shell, White Insulator, Bulk Packaged |
|
|
P/N: UPA-1001R
USB series A Plug, Right Angle, (Thru-Hole), Black Insulator,
UL94V-0
Request Drawing |
|
|
P/N: UPA-1001R-SMT
USB series A Plug, Right Angle, SMT, Black Insulator
Request Drawing
|
|
|
P/N: URA-1001
USB series A Receptacle, Standard Right Angle, (Thru-Hole), 4pin Connector, White Insulator,UL94V-0
Request Drawing |
|
|
P/N: URA-1002
USB series A Receptacle,Right Angle, Stacked, (Thru-Hole), 8pin Connector,White Insulator, UL94V-0
Request Drawing |
|
|
P/N: URA-1003
USB series A Receptacle, Vertical, (Thru-Hole), 4pin Connector,White Insulator , UL94V-0
Request Drawing |
|
|
P/N: URA-1001S
USB series A Receptacle, (SMT), 4pin Connector,Black Insulator, UL94V-0
Request Drawing |
|
|
USB 2.0 Series B Connectors
|
|
|
P/N: UPB-1001
Series B Plug Kit - Contacts, Insulator and Shell, White Insulator, Bulk Packaged |
|
|
P/N: URB-1001B
USB series B Receptacle, Standard Right Angle, (Thru-Hole), 4pin Connector,White Insulator, UL94V-0 |
|
|
P/N: URB-1002
USB series B Receptacle, Vertical, (Thru-Hole), 4pin Connector,Black Insulator, UL94V-0
Request Drawing |
|
|
P/N: URB-1001B-SC
USB series B Receptacle, Right angle with screw hole, (Thru-Hole), 4pin Connector,Black Insulator, UL94V-0 (Wall-mount)
Request Drawing |
|
|
Mini USB 2.0 Connectors
|
|
|
P/N: URB-2-1001
USB mini B 5pin receptacle, (SMT), Black Insulator, UL94V-0
Request Drawing |
|
|
P/N: URB-2-1003
USB mini AB 5pin receptacle, (SMT), Black Insulator, UL94V-0
Request Drawing |
|
|
P/N: UPB-2-1001
USB Mini B 5-pin Plug Kit
Request Drawing |
|
|
Micro USB 2.0 Connectors
|
|
|
P/N: MICRO-USB-001
Micro USB AB socket connector, surface mount type. Request Drawing |
|
|
P/N: MICRO-USB-002
USB 2.0 Micro B Plug Kit. Request Drawing |
|
|

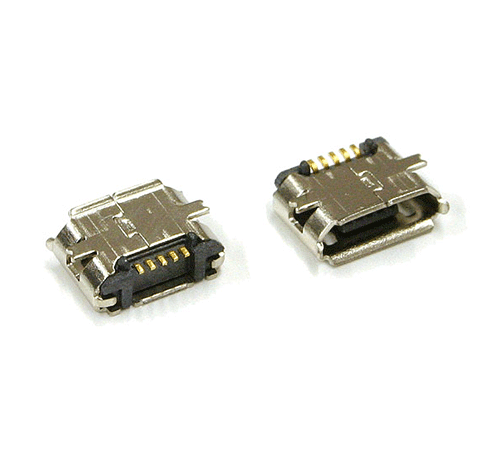

P/N: MICRO-USB-003
Micro USB B socket connector, surface mount type. Request Drawing |
|
|
Other Connectors
|
|
|
P/N: ADP-USB-AAFF
USB A female to A female adapter
|
|
|
|
|
