USB 3.2 Extension System over Fiber

FireNEX™-80G

Extend up to 8 USB 3.2 Devices over Fiber up to 700m

The FireNEX™-80G USB extension systems provide an innovative and secured extender solution for professional USB applications across industries including industrial automation, medical imaging, video conferencing, and more.

The FireNEX™-80G extension systems come with one Local Unit and pairs with up to four Remote Units, each featuring two USB-A ports that support up to USB 3.2 Gen 2 10Gbps data rate. With a fully loaded FireNEX™-80G extension system with four Remote Units collectively offers an 80Gbps bandwidth for up to eight USB 10Gbps devices operates simultaneously.

The four paired Remote Units can be installed separately at an extended range up to 700 meters over single mode fiber optic cables. Transmitting over fiber helps the extension system immune to electromagnetic interference (EMI) and brings high degree of signal integrity on data transferring. In addition, the die-cast metal enclosures of the Remote Unit with mounting bracket plus machine vison standard locking ports ensure the industrial-grade reliable connections for many applications.

Ordering Information

FIRENEX-80G-X1
1x Local Unit,
1x Standard PCIe Bracket,
1x Low-Profile PCIe Bracket,
1x Quick Start Guide
1x Remote Unit,
1x 5V DC Power Supply
FIRENEX-80G-X2
1x Local Unit,
1x Standard PCIe Bracket,
1x Low-Profile PCIe Bracket,
1x Quick Start Guide
2x Remote Unit,
2x 5V DC Power Supply
FIRENEX-80G-X3
1x Local Unit,
1x Standard PCIe Bracket,
1x Low-Profile PCIe Bracket,
1x Quick Start Guide
3x Remote Unit,
3x 5V DC Power Supply
FIRENEX-80G-X4
1x Local Unit,
1x Standard PCIe Bracket,
1x Low-Profile PCIe Bracket,
1x Quick Start Guide
4x Remote Unit,
4x 5V DC Power Supply

Key Features

  • Extend USB 3.2/2.0/1.1 up to 700 meters over single mode fiber cables
  • Support USB 3.2 Gen 2 10Gbps and USB 3.2 Gen 1 5Gbps data rate
  • USB 2.0/1.1 backward compatible, universal support for lower speed USB devices such as keyboard, mouse, microphone, and control units
  • Each Remote Unit comes with 2x USB 10Gbps Type-A ports sharing a total of 20Gbps bandwidth
  • One Local Unit supports up to 4 Remote Units, allowing for up to 8 connected USB 10Gbps devices to operate simultaneously, provides a total bandwidth up to 80Gbps
  • The Local Unit with PCI-e standard and low-profile bracket to adapt for both regular and server PC chassis
  • Metal enclosure for better protection from EMI and hazards from industrial environment
  • Remote Units come with surface mounting holes for secured installation
  • USB3 Vision compliant screw locking ports for reliable cable interconnections
  • Windows, Linux and Mac OS supported

Specifications


EXTENSION RANGE
USB 3.2 10Gbps
Up to 300 m (980 ft.)
USB 3.2 5Gbps (USB 3.0)
Up to 700 m (2,300 ft.)

DATA RATE
USB 3.2 Gen 2
10 Gbps
USB 3.2 Gen 1 (USB 3.0)
5 Gbps
USB 2.0/1.1
Fully Backward Compatible

LOCAL UNIT
Weight
215g
Optical Connector
Up to 4x Duplex LC Connector
Interface
PCI-e Gen3 x8
Form Factor
Standard Height and Low-Profile
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

REMOTE UNIT
Dimensions
85 x 75 x 21.3 mm (3.3 x 3.0 x 0.84”)
Weight
175g
Enclosure Body
Aluminum Alloy
USB Connector
2x USB-A Port
Compliant with USB3 Vision Locking
USB Power Out
5V / 1.5A of each USB Port
Optical Connector
1x Duplex LC Connector
Power Input
5 V DC, 4 A
DC Power Jack
2.1 x 5.5 x 10mm Center positive
Operating Temperature
0 °C to 70 °C (32 °F to 158 °F)

FIBER CABLE
Type

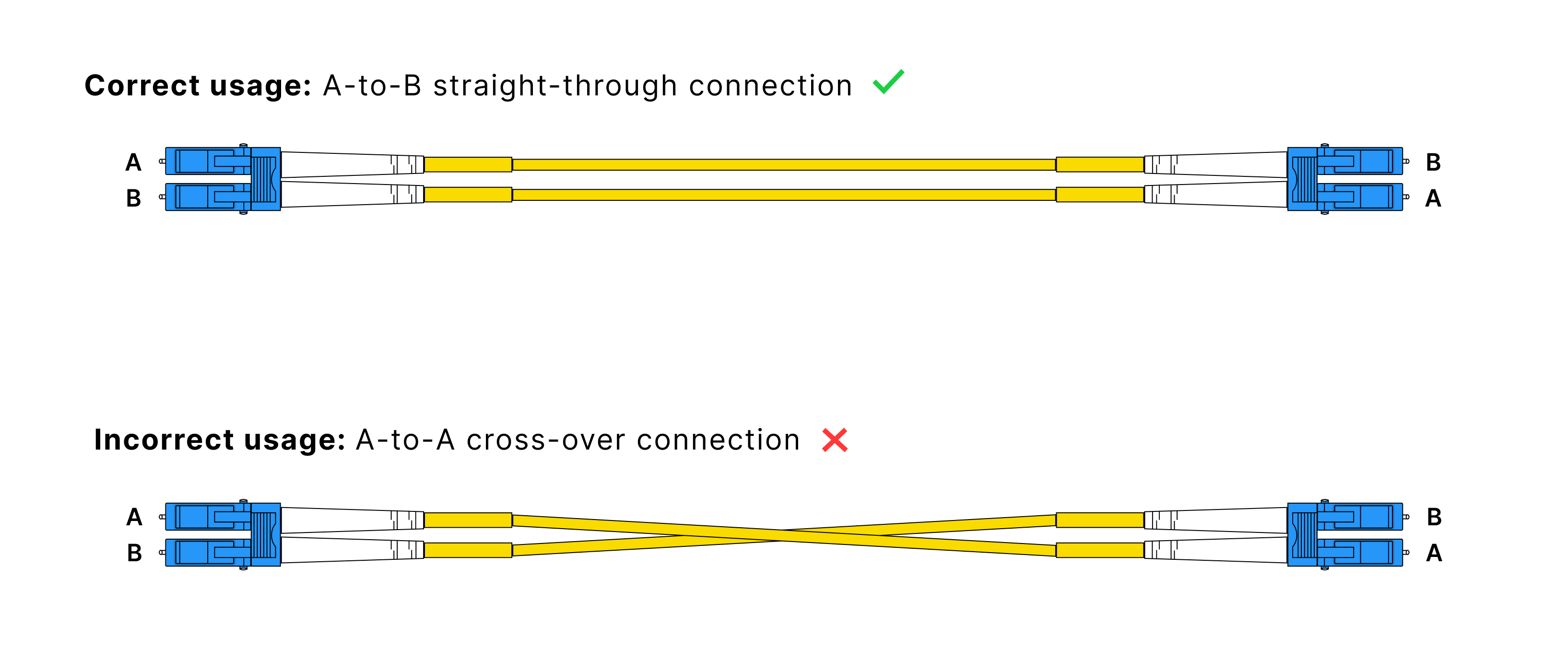

Single mode 9/125 OS2, A/B Wiring
Connector
LC-LC Duplex

POWER ADAPTER
AC Power Plug Type
US/EU/UK/CN
Power Input
100-240 V AC, 50/60 Hz, 0.8 A
Power Output
5 V DC, 4 A

COMPLIANCE
Machine Vision
USB3 Vision Compliant
EMC
FCC, CE
Environmental
RoHS
Laser Safety
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

SUPPORT
Warranty
1-year Manufacture Warranty
FIRENEX-80G application diagram

Optional Accessories

LCLC-S-XXXX
LC-LC Duplex OS2 Single Mode Fiber Cable
Buy
USB A to C Cable
USB 3.2 Gen 2 and Gen 1
USB A to Micro B Cable
USB 3.2 Gen 1 with USB3 Vision Locking

Helpful Links

FAQ

Q: What is the maximum extension range that the FireNEX™-80G supports?
A: FireNEX™-80G is tested to extend USB 10Gbps device up to 300 meters and USB 5Gbps device up to 700 meters. USB3 isochronous transfer devices such as Azure Kinect is tested up to 300 meters extension.

Q: Does FireNEX™-80G work on Linux?
A: Yes, FireNEX™-80G is fully compatible with major Linux operating systems including Ubuntu 18.04 and up.

Q: What is the fiber optic cable used for connecting between the FireNEX™-80G Local and Remote unit?
A: OS2 Single Mode Fiber Optic Cable, with Duplex LC-LC Connector, A/B wiring.

Q: Does FireNEX™-80G support fiber hot plug and play?
A: The Host computer is required to be completely shut down before disconnecting the fiber cable and boot up after reconnecting the fiber.

Q: Is FireNEX™-80G backward compatible with USB 2.0?
A: Yes, FireNEX™-80G is fully backward compatible with USB 2.0/1.1 devices such as MCU, microphone, keyboard, and mouse.
