Key Features
- USB 3.0 expand up to 10m (33 ft.)
- SuperSpeed USB 3.0 at 5Gbps
- USB 2.0 backward compatible
- M2 Threaded Panel Lock
- Bus powered, no external power supply needed
- Rigid metal enclosure with small profile in size
- Plug and Play
- Works with PC, Mac, and Linux
- FCC and CE Compliant
- RoHS Certified
Specifications
EXTENSION RANGE
USB 3.0 SuperSpeed
Up to 10m (33 ft.)
USB 2.0
Up to 10m (33 ft.)
DATA RATE
USB 3.0 SuperSpeed
5 Gb/s
MECHANICAL
Diameter
28.5 x 25.4 x 46.9 mm
Upstream

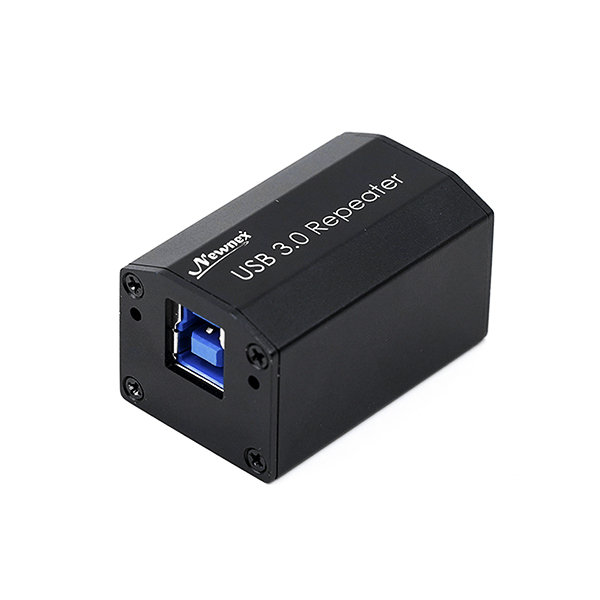

1x USB 3.0 Std-B(USB3 Vision Locking Connector Available)
Downstream

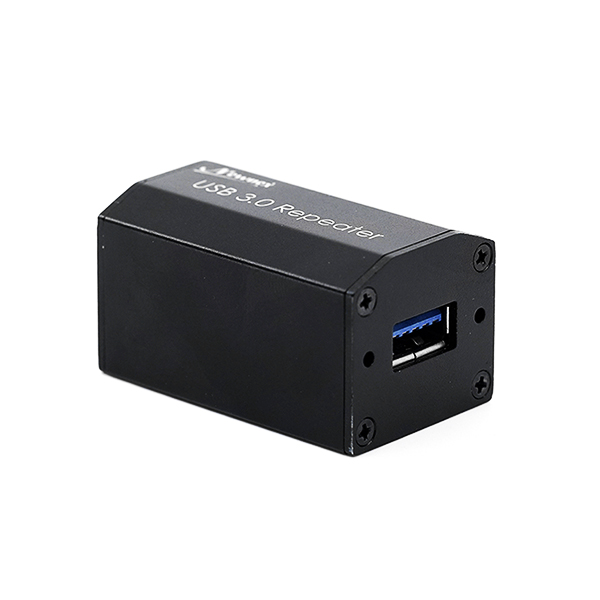

1x USB 3.0 Std-A(USB3 Vision Locking Connector Available)
ENVRIONMENTAL
Operating Temperature
-40°C to 80°C (-40°F to 185°F)
COMPLIANCE
Machine Vision
AIA USB3 Vision Compliant
COMPATIBLE CABLE
US2-AI2BIE-XX
USB3 A/M Locking to B/M Locking, XX m
US2-ABIE-XX
USB3 A/M to B/M Locking, XX m
SUPPORT
Warranty
1-year Manufacture Warranty
Optional Accessories
USB A to C Cable
USB 3.2 Gen 2 and Gen 1
USB 3.0 Screw Locking Cables
USB 3.2 Gen 1 with USB3 Vision Locking
Helpful Links
FAQ
Q: What is the maximum length that the FireNEX™-UDS can support?
A: Up to 10 meters, 5 meters on each side.
Q: What is the maximum speed of the FireNEX™-UDS?
A: FireNEX™-UDS can support data transfer speed up to 5 Gbps as specified by USB 3.0 standard.
Q: Will it work with USB 2.0 or older version of USB technology?
A: Yes. FireNEX™-UDS is back ward compatible with USB 2.0 standard.
Q: Is there a driver for the FireNEX™-UDS?
A: No, the FireNEX™-UDS does not require any drivers, it is Plug and Play.
Q: Where can the RoHS Certificate for FireNEX™-UDS be found?
A: FireNEX™-UDS Rohs Certifcation can be found in Newnex's FireNEX™ Repeaters Certifcate.
