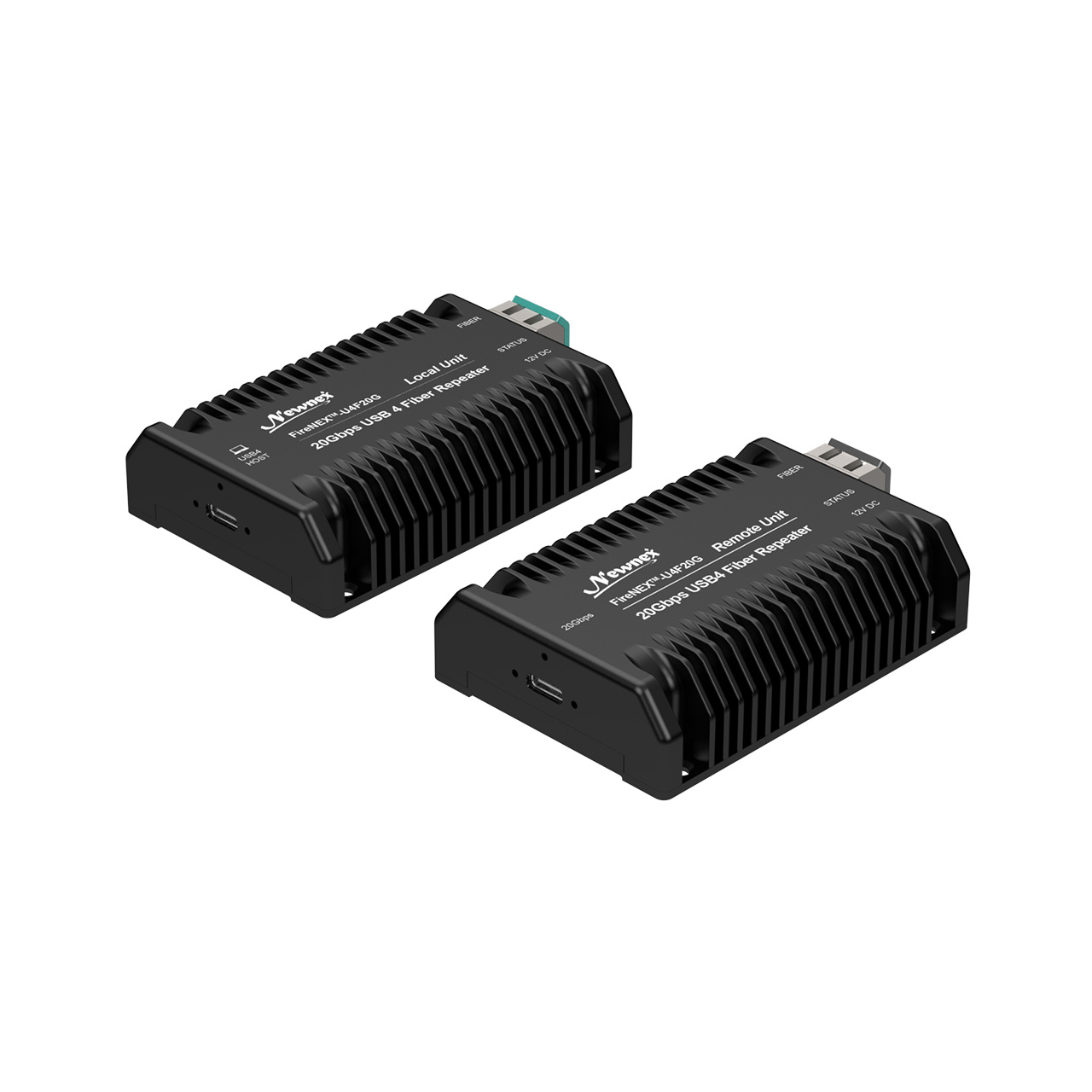

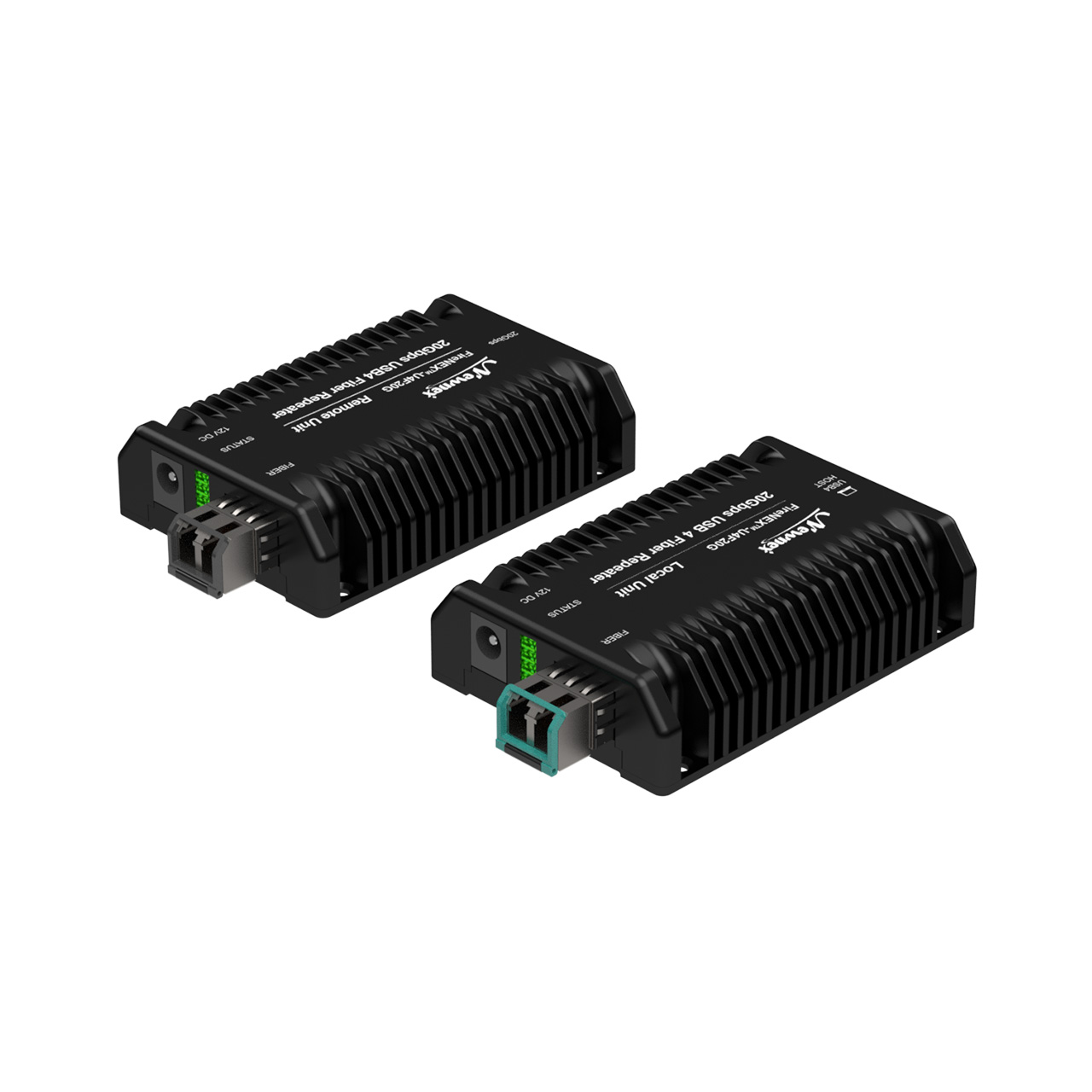

20Gbps USB-C Fiber Repeater up to 700m
FireNEX™-U4F20G-C

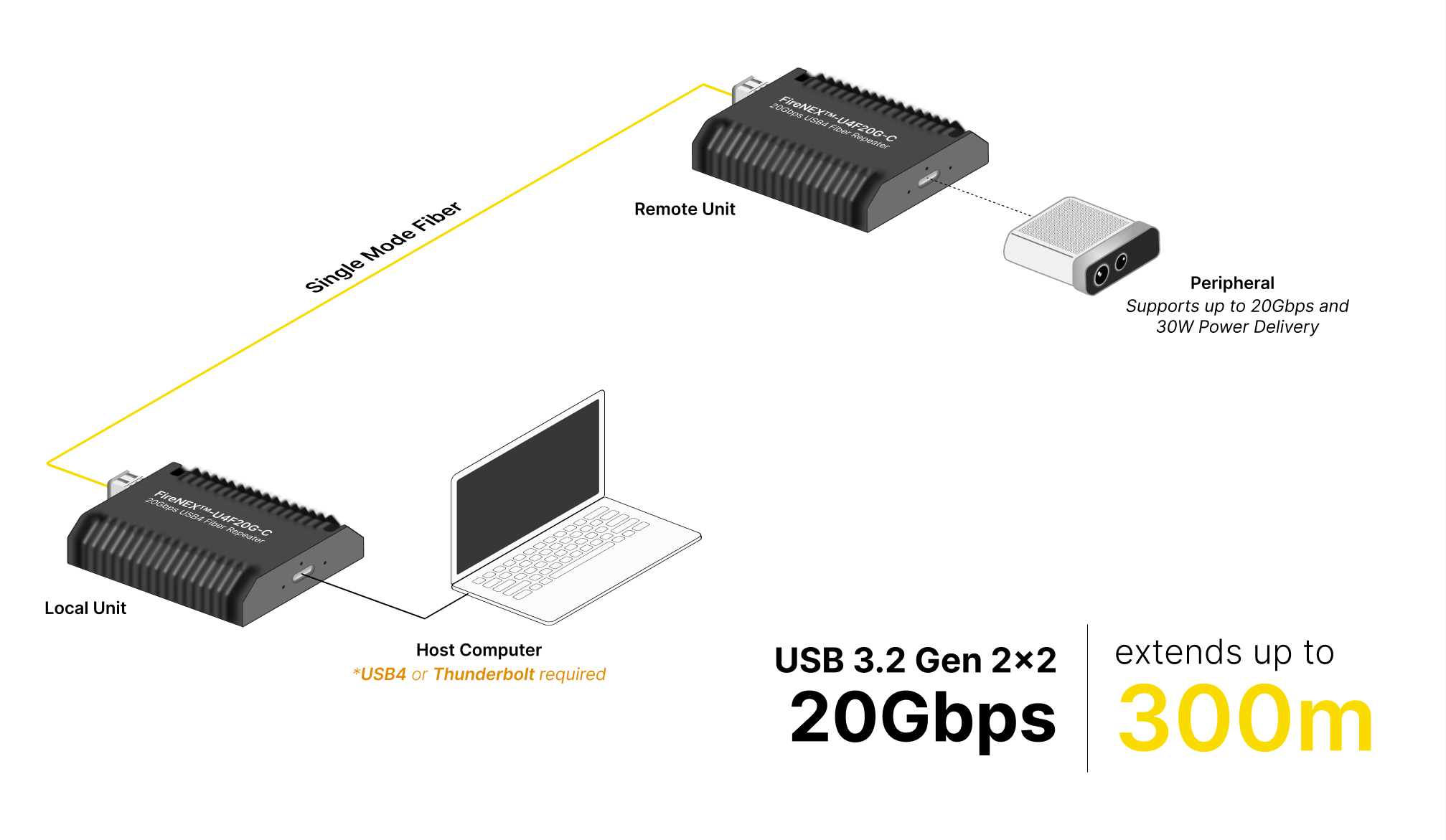

FireNEX™-U4F20G-C is a high-performance USB4 fiber optic repeater designed for long-distance connectivity. For hosts equipped with USB4 or Thunderbolt™ USB-C ports, it transmits USB-C signals over optical fiber—ensuring EMI-free operation—to a Remote Unit featuring a USB 3.2 Gen 2x2 Type-C port with up to 20Gbps throughput.
With superior signal integrity, FireNEX™-U4F20G-C extends connections up to 700m for USB 3.2 Gen 1 (5Gbps) and 300m for USB 3.2 Gen 2x2 (20Gbps)—far beyond the typical limit of passive USB-C cables. The Remote Unit supports USB-C with up to 20Gbps data and 30W Power Delivery, enabling direct connection to high-performance devices with a single cable for both data and power. On the host side, the Local USB-C upstream port supports hot-plug operation, allowing seamless reconnection without system reboot—even if the fiber link is interrupted or the Remote Unit loses power.
Fully compatible with native USB drivers across Windows, macOS, and Linux, the FireNEX™-U4F20G-C is backward compatible with USB 3.0, 2.0, and 1.1 devices, making it ideal for demanding applications such as industrial automation, machine vision, medical imaging, scientific research, and Pro AV.
Key Features
- USB4 Fiber Repeater: Extends USB-C data over single-mode fiber with up to 20Gbps aggregate bandwidth.
- Long-Distance Extension: Supports up to 700m for USB 3.2 Gen 1 (5Gbps) and up to 300m for USB 3.2 Gen 2x2 (20Gbps).
- 20Gbps Downstream USB-C Port with 30W USB PD: Remote unit features a USB-C port supporting up to USB 3.2 Gen 2x2 (20Gbps) and up to 30W USB Power Delivery for device connectivity.
- Legacy Device Support: Fully backward compatible with USB 3.0 and USB 2.0/1.1 peripherals.
- Broad Host Support: Compatible with USB4 and Thunderbolt 3/4/5 hosts with hot plug-and-play support.
- Hot-Plug Ready: Maintains system stability when the fiber link is disconnected or the remote unit powers off.
- Universal OS Compatibility: Works seamlessly with Windows, macOS, and Ubuntu using standard system drivers.
- High Signal Integrity: Ensures minimal signal degradation and strong EMI immunity over fiber.
In the Box

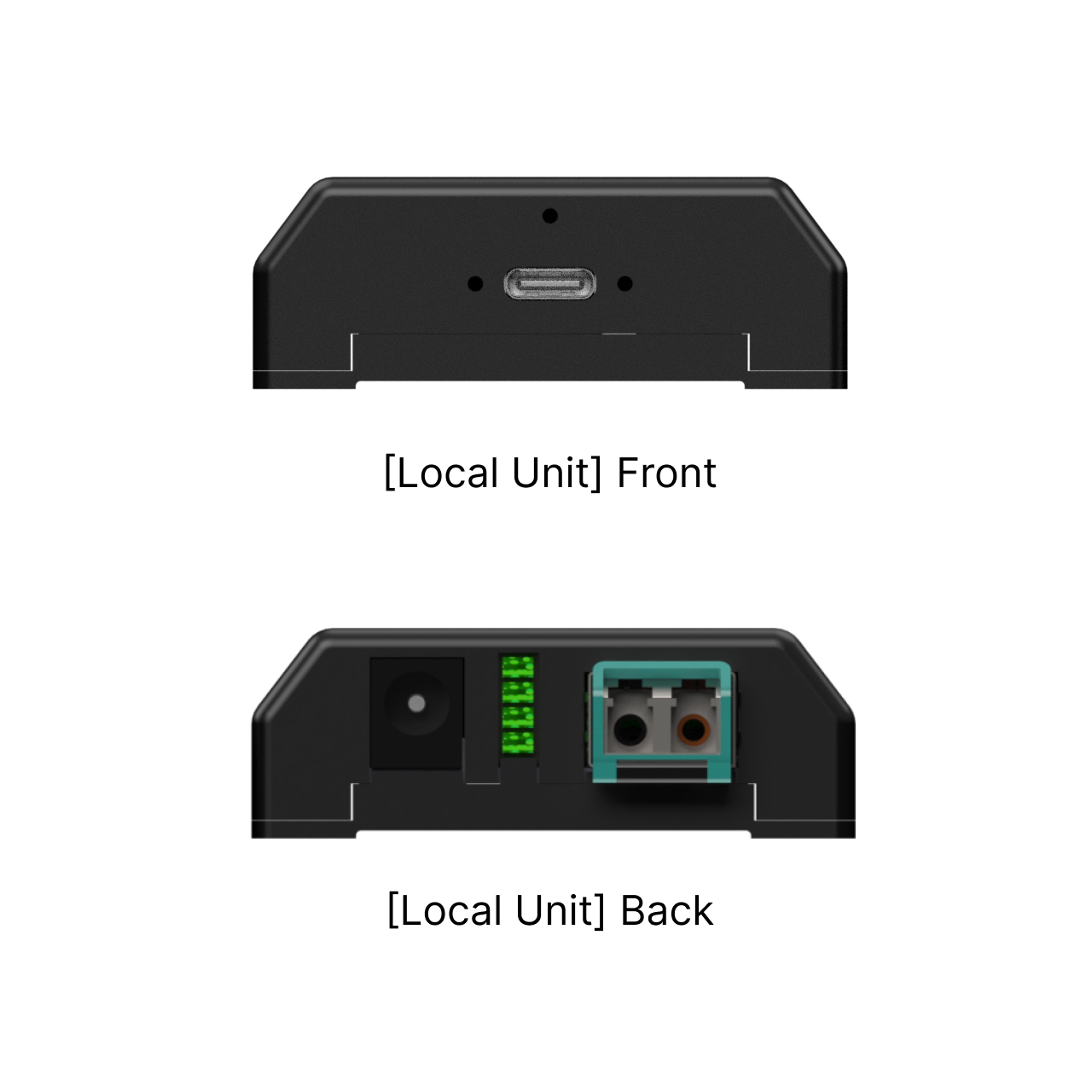

- 1 × FireNEX™-U4F20G-C Local Unit

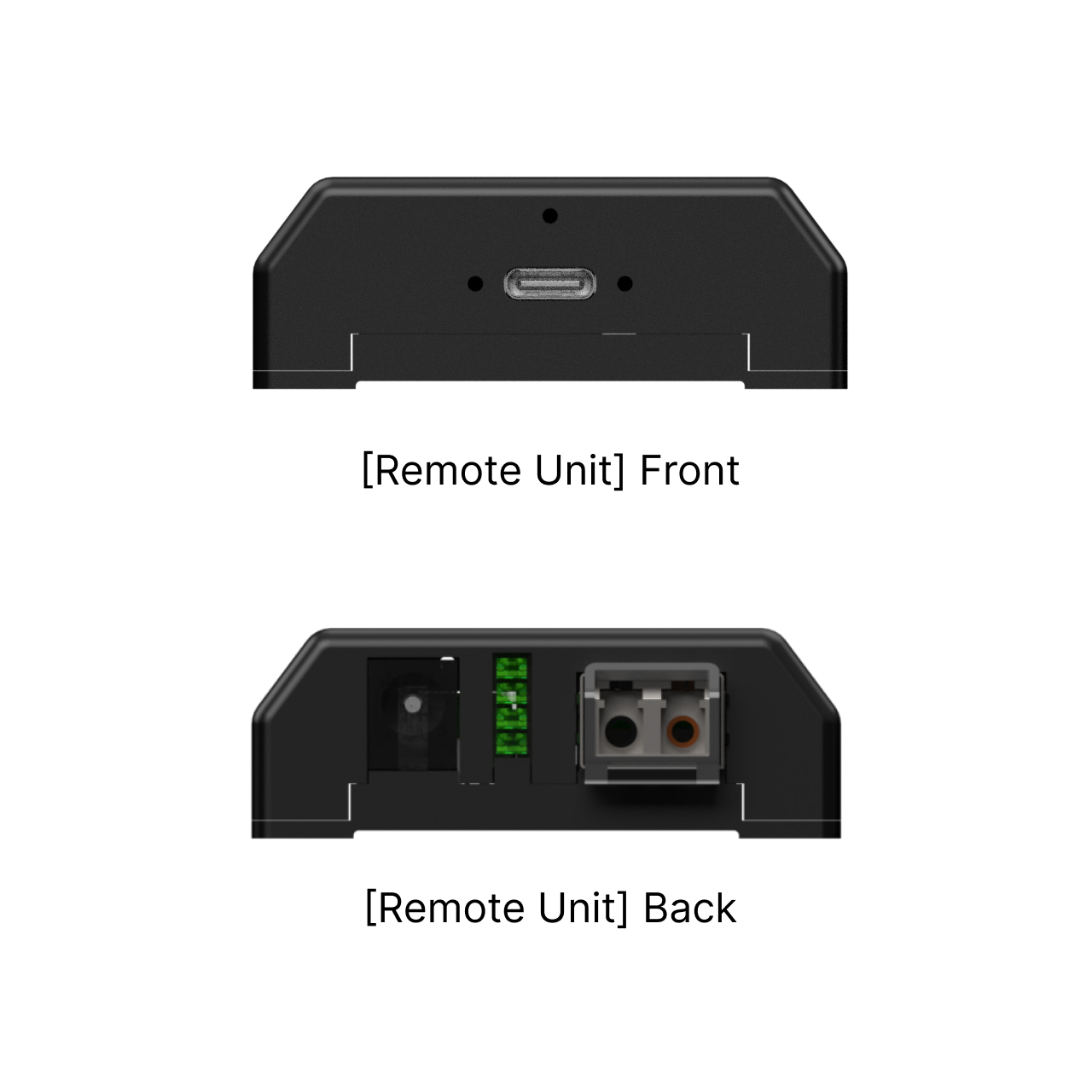

- 1 × FireNEX™-U4F20G-C Remote Unit
- 1 × USB4 Type-C Cable, 1m
- 2 × 12V DC Power Supply
- 1 × FireNEX™-U4F20G-C User Guide
Specifications
FAQ
Q: What is the maximum extension range that the FireNEX™-U4F20G-C supports?
A: FireNEX™-U4F20G-C supports USB-C extension up to 300 meters at 20Gbps (USB 3.2 Gen 2x2) and up to 700 meters at 5Gbps (USB 3.2 Gen 1). USB3 isochronous transfer devices such as Azure Kinect are tested up to 300 meters.
Q: Does FireNEX™-U4F20G-C support USB Power Delivery (PD)?
A: Yes. The Remote Unit’s downstream USB-C port supports USB PD up to 30W (5V/3A, 9V/3A, 15V/2A, 20V/1.5A), allowing a single cable to carry both data and power to the connected device.
Q: Does FireNEX™-U4F20G-C support DP Alt Mode?
A: No. FireNEX™-U4F20GC currently supports USB data transfer only and does not support DisplayPort Alt Mode.
Q: Does FireNEX™-U4F20G-C work on Linux?
A: Yes. FireNEX™-U4F20GC is fully compatible with major Linux distributions including Ubuntu 18.04 and later.
Q: Does FireNEX™-U4F20G-C support fiber hot plug and play?
A: Yes. FireNEX™-U4F20GC supports hot plug-and-play on the fiber link. The Local Unit’s upstream USB-C port also supports hot-plug to prevent system reboots when the fiber or remote unit is disconnected.
Q: Is FireNEX™-U4F20G-C backward compatible with USB 2.0?
A: Yes. FireNEX™-U4F20GC is fully backward compatible with USB 2.0/1.1 devices such as microcontrollers, microphones, keyboards, and mice.
Q: What fiber optic cable is required between the Local and Remote units?
A: OS2 Single Mode Fiber Optic Cable with a Duplex LC-LC connector, A/B straight-through wiring per the TIA-568-C standard.
Q: What type of USB-C host port is required?
A: The Local Unit requires a USB4 or Thunderbolt 3, 4, or 5 USB-C host port. Standard USB 3.2 or USB 2.0 USB-C ports are not supported.
Documents
- Data Sheet – FireNEX™-U4F20G-C
- User Guide – FireNEX™-U4F20G-C
- DIM Drawing – FireNEX™-U4F20G-C
- How to Identify Whether a USB-C Host Port Supports USB4 or Thunderbolt
