USB C Panel Mount Cable

 Introduction

With a variety of panel mount female connector designs, Newnex USB-C cables empower users to securely install and seamlessly access USB-C ports across a spectrum of professional applications. Whether it's rugged industrial machinery, interactive commercial displays, or everyday consumer electronics, Newnex panel mount USB-C cables deliver unparalleled versatility and reliability.

USB-C Female Panel Mount Cables

 Panel Mount USB-C Cable Features

  • USB 3.2 data transfer up to 10Gbps
  • Display Alt-Mode support
  • USB Power Delivery (PD) support up to 240W (EPR)
  • USB-C Standard Screw Locking compatible connector available
  • IP67 Rated connector available

 Panel Mount Type-C Connectors

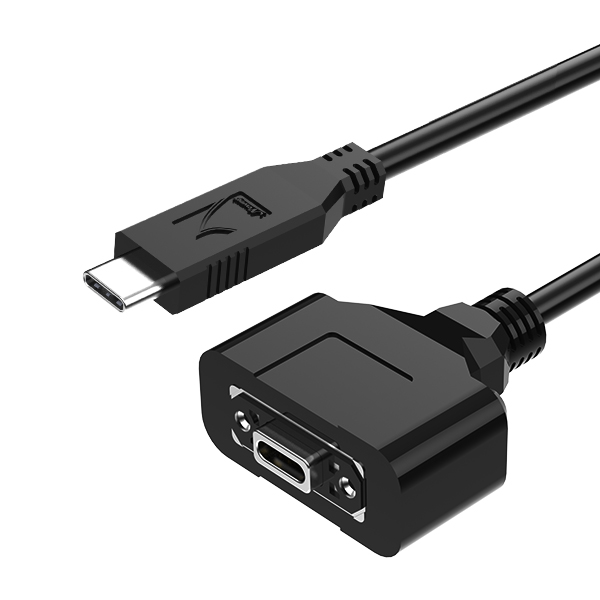

Regular Panel Mount: This USB Type-C connector is designed for secure installation on control panels, display panels, or within devices. With a panel mount end, it offers a clean, professional, and integrated look, ensuring a stable connection in stationary setups or equipment.

Dual Screw Locking: Featuring a robust dual screw locking mechanism, this USB Type-C connector ensures a secure and vibration-resistant connection, ideal for industrial, automotive, or other environments where movement and shocks are common. This design prevents accidental disconnections, providing reliability for critical applications.

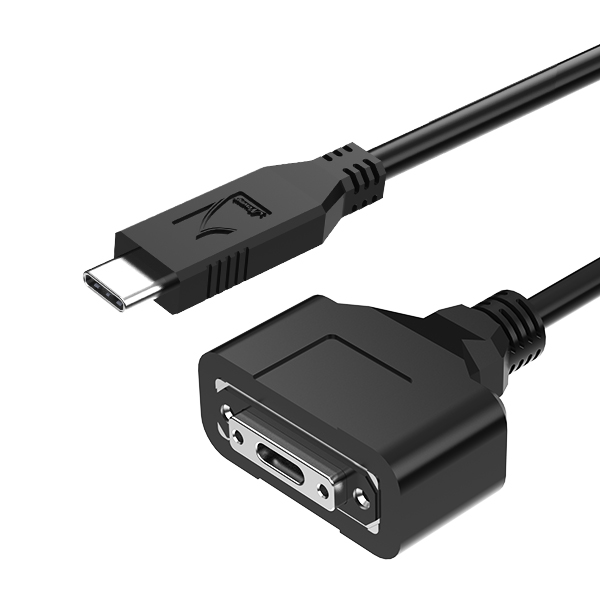

IP67 Rated Panel Mount with Locking: With an IP67 rating, this connector offers the ultimate in connection security and environmental protection. It is designed for use in extreme conditions where both physical connection integrity and protection from elements like water and dust are paramount.

Single Screw Locking: With a single screw locking feature, this USB Type-C connector offers a secure connection with a simpler locking mechanism than the dual screw version. It is suitable for applications where space is limited or where a balance between connection security and ease of disconnection is needed.

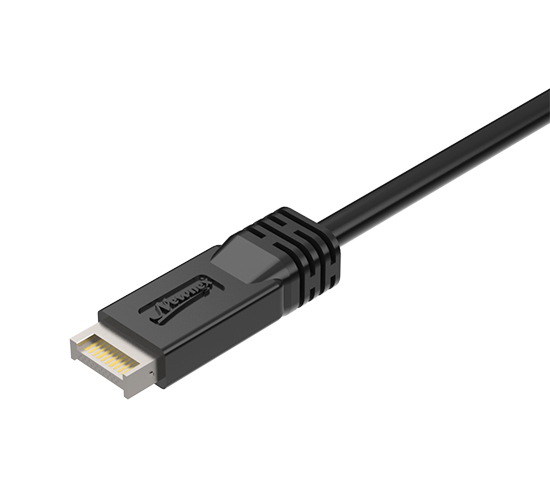

Type E Connector: This specialized USB Type-C connector is designed to connect with Type E Key A motherboards or adapters, providing a direct interface for devices requiring high-speed data transfer and power delivery. It is ideal for compact and integrated system builds where internal cable management is critical.



Panel Mount USB-C Cables



USB 3.2 C to C Female

C Female Panel Mount to C Male Connector

U4S5C01C08-010
1 m (3.3 ft)
USB 3.2 10Gbps
DP 1.4
20V/5A

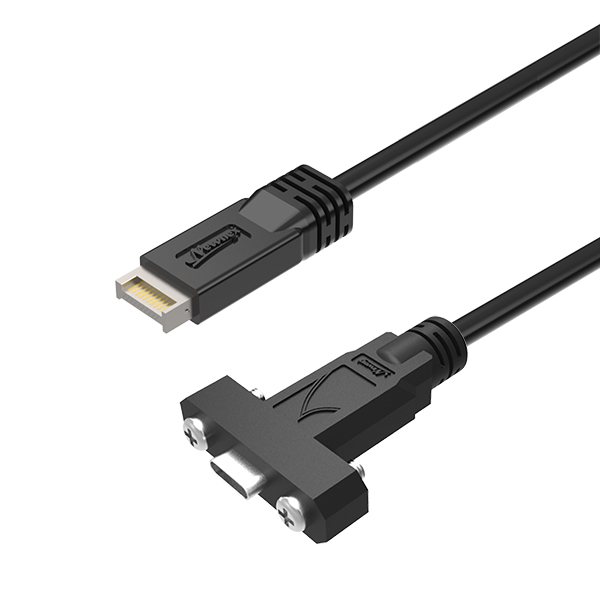

USB 3.2 Type-E Male to C Female

C Female Panel Mount to Internal 20-Pin Key A

U4S5E01C08-005
0.5 m (1.64 ft)
USB 3.2 10Gbps
DP 1.4
20V/5A
